Couplings
Loading...
6mm-1/8 Knee Coupling Knee coupling for 6mm tubing. Fits on both 1/8 BSP- and 1/8 NPT threading.
8mm-1/8 Knee Coupling Knee coupling for 8mm tubing. Fits on both 1/8 BSP- and 1/8 NPT threading.

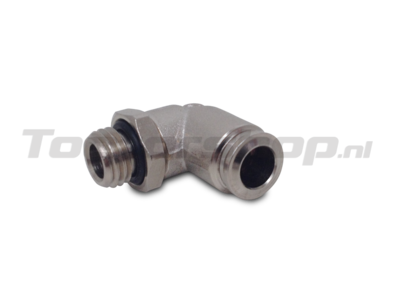

Angled push-in coupling for 6 millimeter hose. With PTC connection for 6 mm hose and M12 x 1.5 BSPP male thread. Suitable for Hadley Truck horns with an M12 connection.

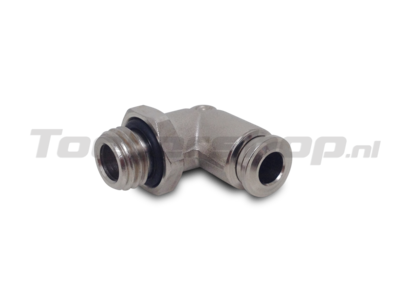

Angled push-in coupling for 8 millimeter hose. With PTC connection for 8 mm hose and M12 x 1.5 BSPP male thread. Suitable for Hadley Truck horns with an M12 connection.
Knee coupling for 8 millimeter tube to M12 x 1.5

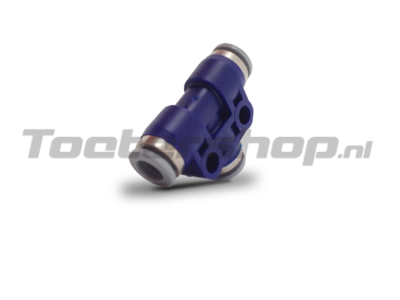

Push to connect splitter for 6mm tubing
Push to connect splitter 8mm for 2x 6mm tubing
6mm-1/8 Coupling Straight coupling for 6mm tubing. Fits on both 1/8 BSP- and 1/8 NPT threading.
Straight coupling for 8mm tubing. Because of the short thread it wil fit in both NPT- as BSP threaded inlets. Can be used in combination with 7/16"-24 adaptor.
6mm-1/4 Coupling Straight coupling for 6mm tubing. Fits on both 1/4 BSP- and 1/4 NPT threading.
8mm-1/4 Coupling Straight coupling for 8mm tubing. Fits on both 1/4 BSP- and 1/4 NPT threading.
10mm-1/4 Coupling Straight coupling for 10mm tubing. Fits on both 1/4 BSP- and 1/4 NPT threading.
Right angle plug-in coupling with PTC connection for 6 mm. This right-angled coupling can be plugged into another PTC connection with the 6mm pin. Suitable for Hadley horns with 6mm PTC connection.
Right angle plug-in coupling with PTC connection for 6 mm. 44 mm This right-angled coupling can be plugged into another PTC connection with the 6mm pin. Suitable for Hadley horns with 6mm PTC connecti
Plug-in coupling with PTC connection for 8 mm tube. This coupling can be plugged into another PTC connection with the 6mm pin. Suitable for Hadley horns with 6mm PTC connection.

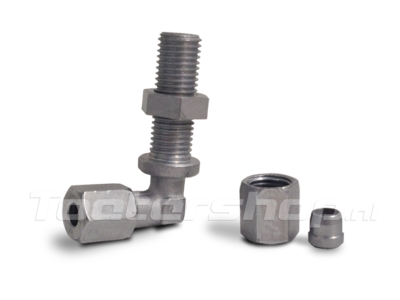

Extended angle coupling with fitting for 1/4 inch hose and 7/16-24 UNF male thread. For Hadley air horns with 7/16 thread connection.

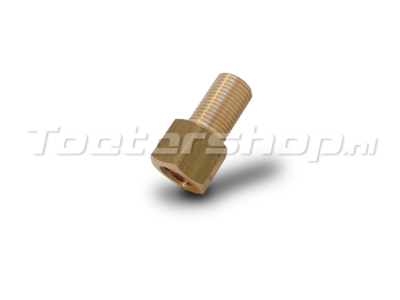

Special brass reducing nipple, or adapter for 7/16-24 UNS male thread to 1/8 BSP female thread. Specially suitable for Hadley air horns with American inlet.
Brass adaptor with 7/16-24 UNS Female inlet, to European 1/8 BSP Female inlet.
Brass adapter M12 to 7/16 UNF. Special brass adapter to convert M12x1.5 (EU) to 7/16-24 UNF (US). Extended adapter M12x1.5 to 7/16 UNF.
Adapter for 1/8 NPT to 1/8 BSPP. With 1/8 NPT male to 1/8 BSPP female.
Adapter for 1/8 BSP to 1/8 NPT. With 1/8 BSPP male to 1/8 NPT female.
Adapter for 1/4 NPT to 1/4 BSPP. With 1/4 NPT male to 1/4 BSPP female.
Adapter for 1/4 BSP to 1/4 NPT. With 1/4 BSPP male to 1/4 NPT female.
Adapter for 3/8 NPT to 3/8 BSPP. With 3/8 NPT male to 3/8 BSPP female.
Adapter for 3/8 BSP to 3/8 NPT. With 3/8 BSPP male to 3/8 NPT female.
1/4inch-1/8 Knee Coupling Knee coupling for 1/4inch (US) tubing. Fits on both 1/8 BSP- and 1/8 NPT threading.
3/8inch-1/8 Knee Coupling Knee coupling for 3/8inch (US) tubing. Fits on both 1/8 BSP- and NPT threading.
1/4inch-1/8 Coupling Straight coupling for 1/4inch tubing. Fits on both 1/8 BSP- and 1/8 NPT threading.
3/8inch-1/8 Coupling Straight coupling for 3/8inch tubing. Fits on both 1/8 BSP- and 1/8 NPT threading.
1/4inch-1/4 Coupling Straight coupling for 1/4inch tubing. Fits on both 1/4 BSP- and 1/4 NPT threading.
3/8inch-1/4 Coupling Straight coupling for 3/8inch tubing. Fits on both 1/4 BSP- and 1/4 NPT threading.
1/4inch-3/8 Coupling Straight coupling for 1/4inch tubing. Fits on both 3/8 BSP- and 3/8 NPT threading.
3/8inch-3/8 Coupling Straight coupling for 3/8inch tubing. Fits on both 3/8 BSP- and 3/8 NPT threading.
1/4inch-1/4 Knee Coupling Knee coupling for 1/4inch (US) tubing. Fits on both 1/4 BSP- and 1/4 NPT threading.
3/8inch-1/4 Knee Coupling Knee coupling for 3/8inch (US) tubing. Fits on both 1/8 BSP- and NPT threading.
Straight coupling PTC for 6 millimeter tube to 1/8 BSP P
Straight coupling PTC for 6 millimeter tube to 1/4 BSPP
6mm-3/8 Coupling Straight coupling for 6mm tubing. Fits on 3/8 BSP threading.
Straight coupling PTC for 8 millimeter tube to 1/8 BSPP
8mm-3/8 Coupling Straight coupling for 8mm tubing. Fits on 3/8 BSP threading.
10mm-3/8 Coupling Straight coupling for 10mm tubing. Fits on 3/8 BSP threading.
Straight coupling PTC for 10 millimeter tube to 1/2 BSPP
Straight coupling PTC for 12 millimeter tube to 1/4 BSPP
Straight coupling PTC for 12 millimeter tube to 1/2 BSPP
Straight coupling PTC for 12 millimeter tube to 3/8 BSPP
Straight coupling PTC for 6 millimeter tube to 1/8 BSPT (Conical)
Straight coupling PTC for 6 millimeter tube to 1/4 BSPT (Conical)
Straight coupling PTC for 8 millimeter tube to 1/8 BSPT (Conical)
8mm-1/4 Coupling Straight coupling for 8mm tubing. Fits on 1/4 BSP threading.
Straight coupling PTC for 8 millimeter tube to 3/8 BSPT (Conical)
Straight coupling PTC for 10 millimeter tube to 1/8 BSPT (Conical)
Straight coupling PTC for 10 millimeter tube to 1/4 BSPT (Conical)
Straight coupling PTC for 10 millimeter tube to 3/8 BSPT (Conical)
Straight coupling PTC for 10 millimeter tube to 1/2 BSPT (Conical)
Straight screw-on coupling PTC for 6 millimeter tube to 1/8 BSPP female
Straight screw-on coupling PTC for 8 millimeter tube to 1/8 BSPP female
Straight screw-on coupling PTC for 8 millimeter tube to 1/4 BSPP female
Straight screw-on coupling PTC for 10 millimeter tube to 1/4 BSPP female
Right angle connection piece for 8mm to 6mm tube. With PTC connection for 8 mm and 6 mm tube.
Right angle connection piece for 10mm to 8mm tube. With PTC connection for 10 mm and 8 mm tube.
Reducing Nipple 1/2 gas to 1/4 gas
Quick connector with 1/8 BSP female connections. For quick connecting- or releasing pneumatic systems without pressure loss at the air source. 1/8 BSP female thread on both sides.
Quick connector (EURO system) with 1/4 BSP female connections. For quick connecting- or releasing pneumatic systems without pressure loss at the air source. 1/4 BSP female thread on both sides.
Quick connector (ORION system) with 1/4 BSP female connections. For quick connecting- or releasing pneumatic systems without pressure loss at the air source. 1/4 BSP female thread on both sides.
Hadley seal for Hadley horns with empty PTC inlet. Complete set to connect 6 mm tube directly to Hadley horns with inlet without thread, or plug-in coupling. (NOTE: Only empty PTC)
Hexagonal brass Hadley nut for 7/16-24 thread. Set of 5 Used for American connections with a 7/16 male thread.
Pin for 6mm plug-in coupling. Double-sided plug with a diameter of 6mm. Both sides can be plugged into a 6mm 'Push to Connect' connection.
Straight socket 1/4 BSPP (female)
Straight socket 1/8 BSPP (female)
Tube or pipe with 7/16 uns male thread. The 7/16 male thread is suitable for turning Hadley horns with a 7/16 input.
Push to connect splitter for 1/4 inch tubing
Two-sided plug-in coupling (PTC) for 6 millimeter air tube.
Hadley 2x 1/8 NPT male Brass Fitting
Throttle valve 6mm PTC 1/8 BSP. Throttle valve, or also flow reducer. This valve can reduce the amount of air.
Throttle valve 8mm PTC 1/8 BSP. Throttle valve, or also flow reducer. This valve can reduce the amount of air.
Throttle valve 8mm PTC 1/4 BSP. Throttle valve, or also flow reducer. This valve can reduce the amount of air.
Knee coupling PTC for 8 millimeter tube to 1/4 BSPT (Conical)
Knee coupling with 2 x 1/8 BSP (female thread)
Pneumatic distribution block with 4 in-/outlets. All 4 openings are 1/4 BSP female.
Spiral tube Ø8mm including couplings (1/4 bsp male) with spring. When extended 6 meters long.
Push to connect splitter for 3/8 BSP thread to 2x 10mm tubing. 3/8 BSP (male) 2x810mm PTC
Push to connect splitter for 3/8 BSP thread to 2x 8mm tubing. 3/8 BSP (male) 2x8mm PTC
Push to connect splitter 10 mm for 2x 8mm tubing
Push to connect splitter for 1/4 inch tubing
Plug-in coupling with PTC connection for 6 mm tube. This coupling can be plugged into another 8mm PTC connection with the 8mm pin.
Hose barb with an outer diameter of Ø7.3 mm. Used to connect hoses with an inner diameter of Ø7 mm. Features 1/4 BSPT male thread on the other side.
Hose barb with an outer diameter of Ø7.3 mm. Used to connect hoses with an inner diameter of Ø7 mm. Features 1/8 BSPT male thread on the other side.
